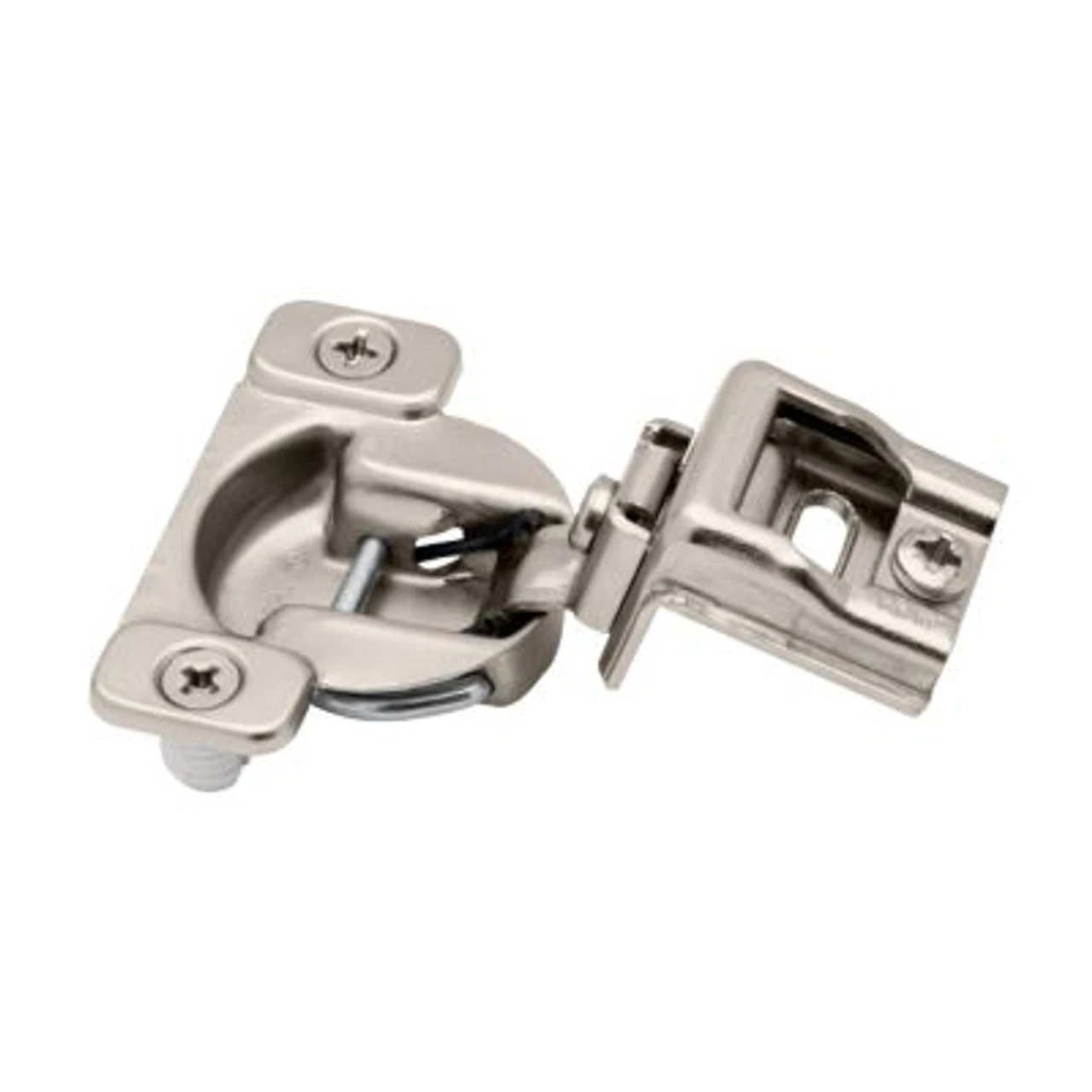

Liberty 1-1/8" To 1-1/4" Overlay Hinge - 6 Way Adjustable LQ-H70247-NP-A

Liberty 1-1/8" To 1-1/4" Overlay Hinge - 6 Way Adjustable LQ-H70247-NP-A - Image 2

Liberty 1-1/8" To 1-1/4" Overlay Hinge - 6 Way Adjustable LQ-H70247-NP-A - Image 3

Liberty 1-1/8" To 1-1/4" Overlay Hinge - 6 Way Adjustable LQ-H70247-NP-A - Image 4

Liberty 1-1/8" To 1-1/4" Overlay Hinge - 6 Way Adjustable LQ-H70247-NP-A - Image 5

Original price was: $14.00.Current price is: $9.80.

SKU: ZGXHD 16549 Categories: Cabinet Hinges, European - Concealed Tags: European - Concealed, Liberty

Excellent customer service online in a timely manner
Buy quality, buy with us.
Hassle-Free Payments
Buy with Peace of Mind

Description
Reviews (0)

Easy to install one-piece face frame Euro hinge for full overlay doors partial wrap face frame plate.

Builder’s European style compact one piece hinge. Mounting plate and hinge are one easy to install unit.

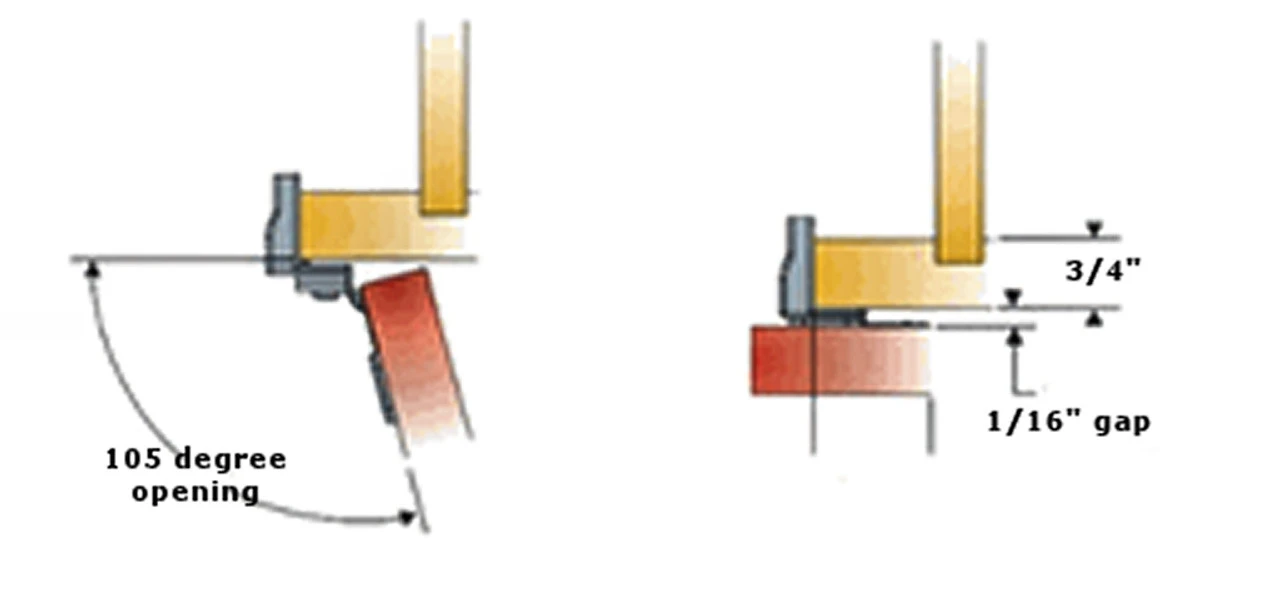

Opening angle is 105 degrees.
Self closing.
Designed for face frame cabinets with overlay doors 1-1/4″ overlay.
Hinge is for cabinets with a 3/4″ thick face frame.

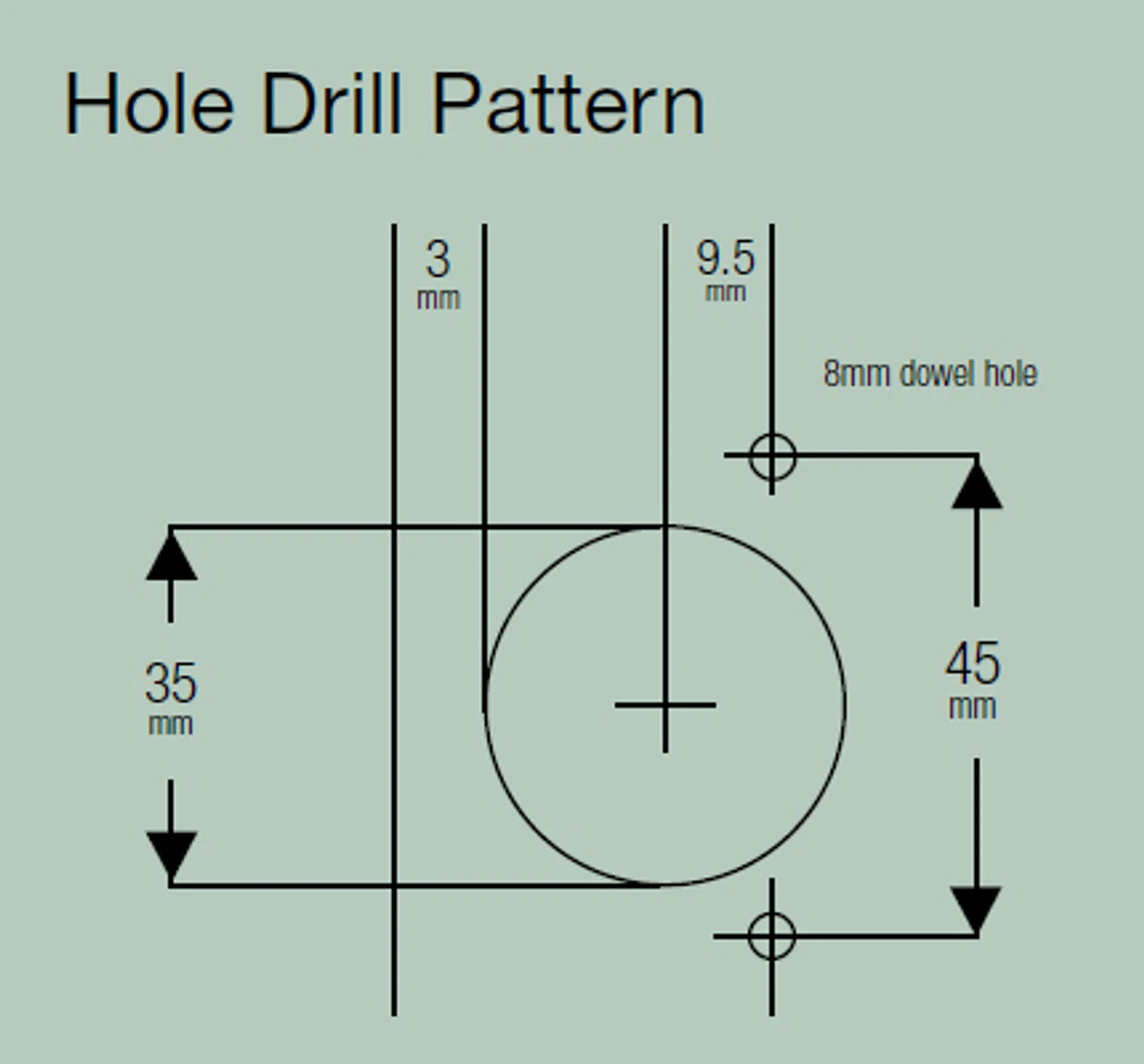

Cup diameter 1-3/8″. Cup depth 7/16″. Bore distance (k) 3mm for 1-1/8″ overlay or 7mm for 1-1/4″ overlay.
Comes with screws in the press-in dowels. Dowels are used in MDF or particle board. If mounting in solid wood, remove the dowels and use only the wood screws.
Mounting screws not included for the face frame part. Each hinge requires one #6-7 screw to attach to the face frame.

You are purchasing one hinge with dowels.

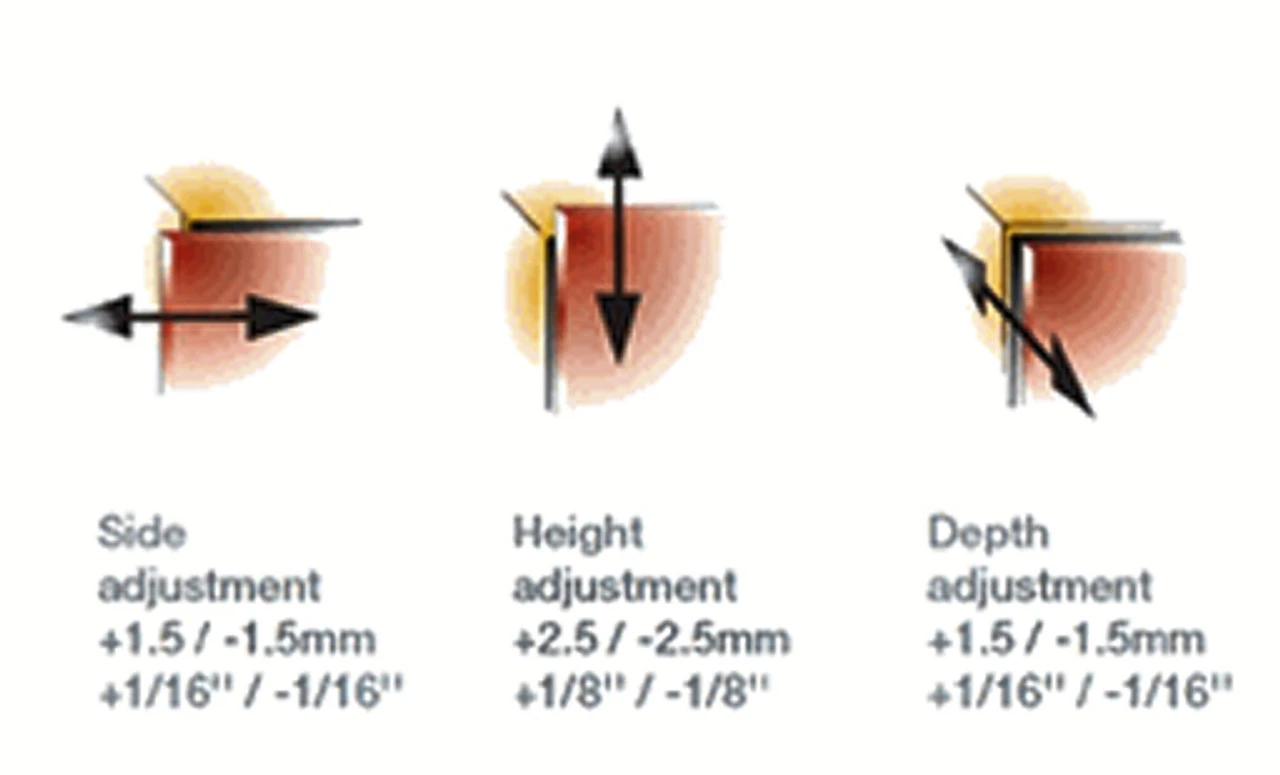

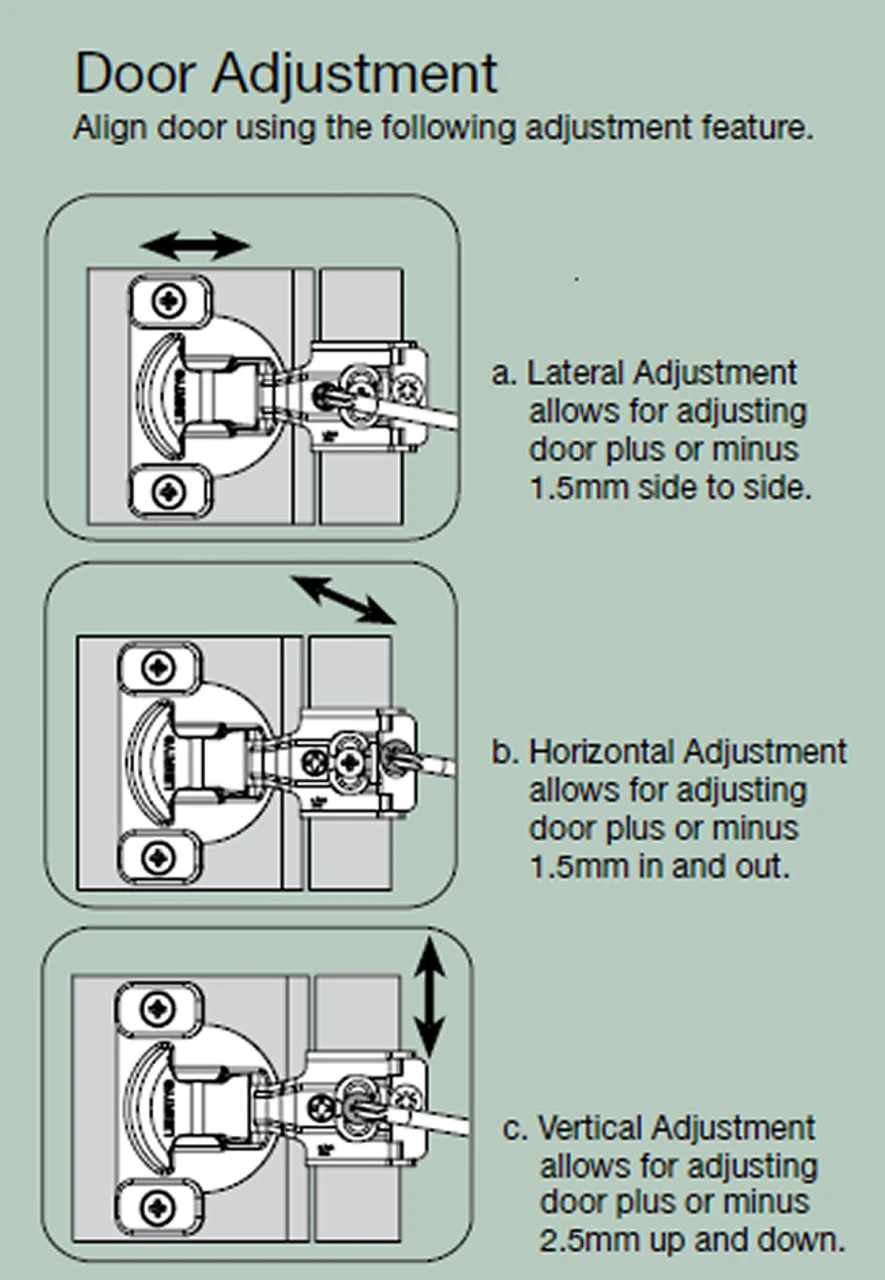

Nickel plated – 6-Way Adjustable – Liberty Hardware
