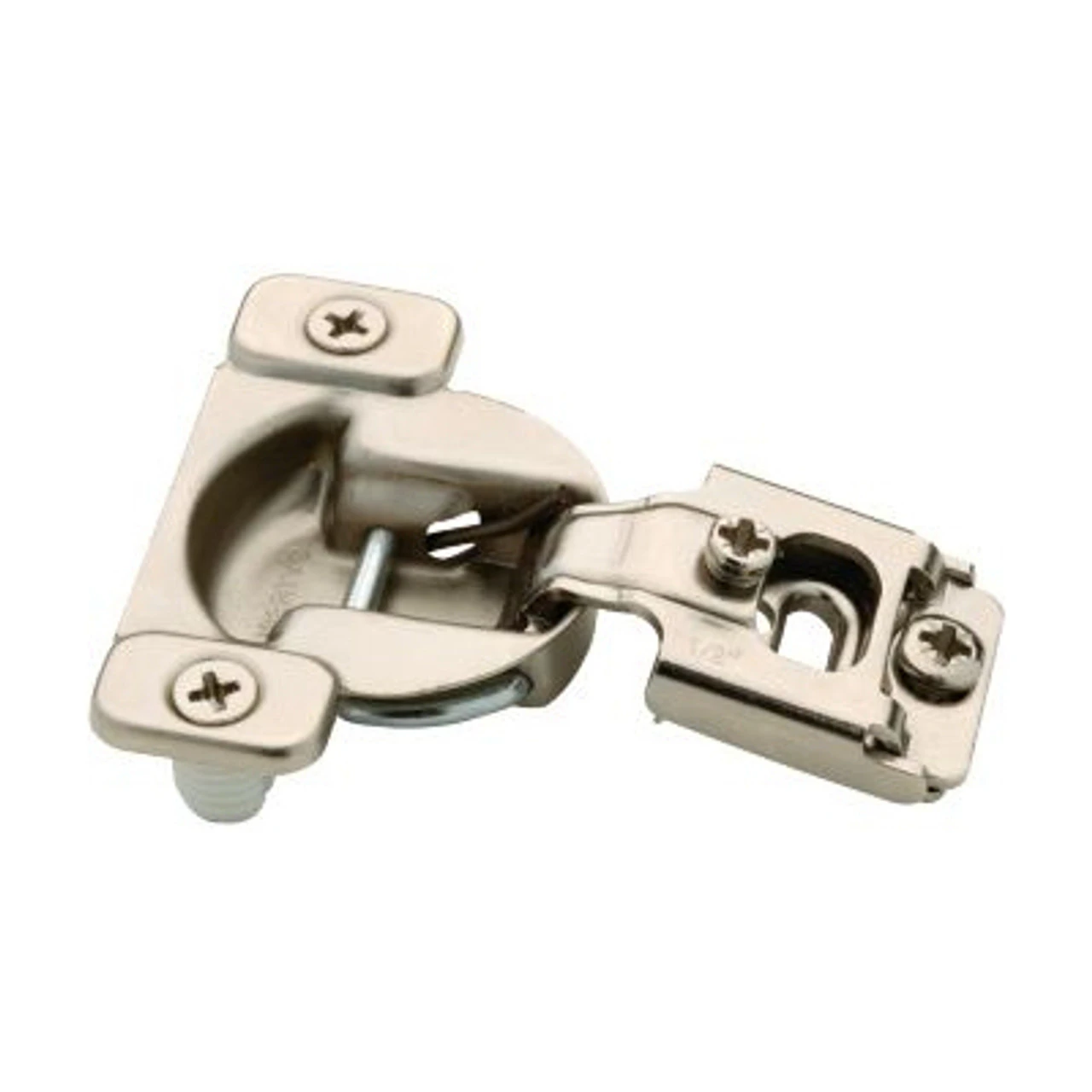

Liberty 7/16″ Overlay 6-Way Compact Hinge LQ-H05108-NP-A

Compact Euro 7/16″ Partial Overlay Face Frame Hinge with four prong base plate – One piece design makes mounting a snap. This is the economical standard euro used by commercial cabinetmakers.

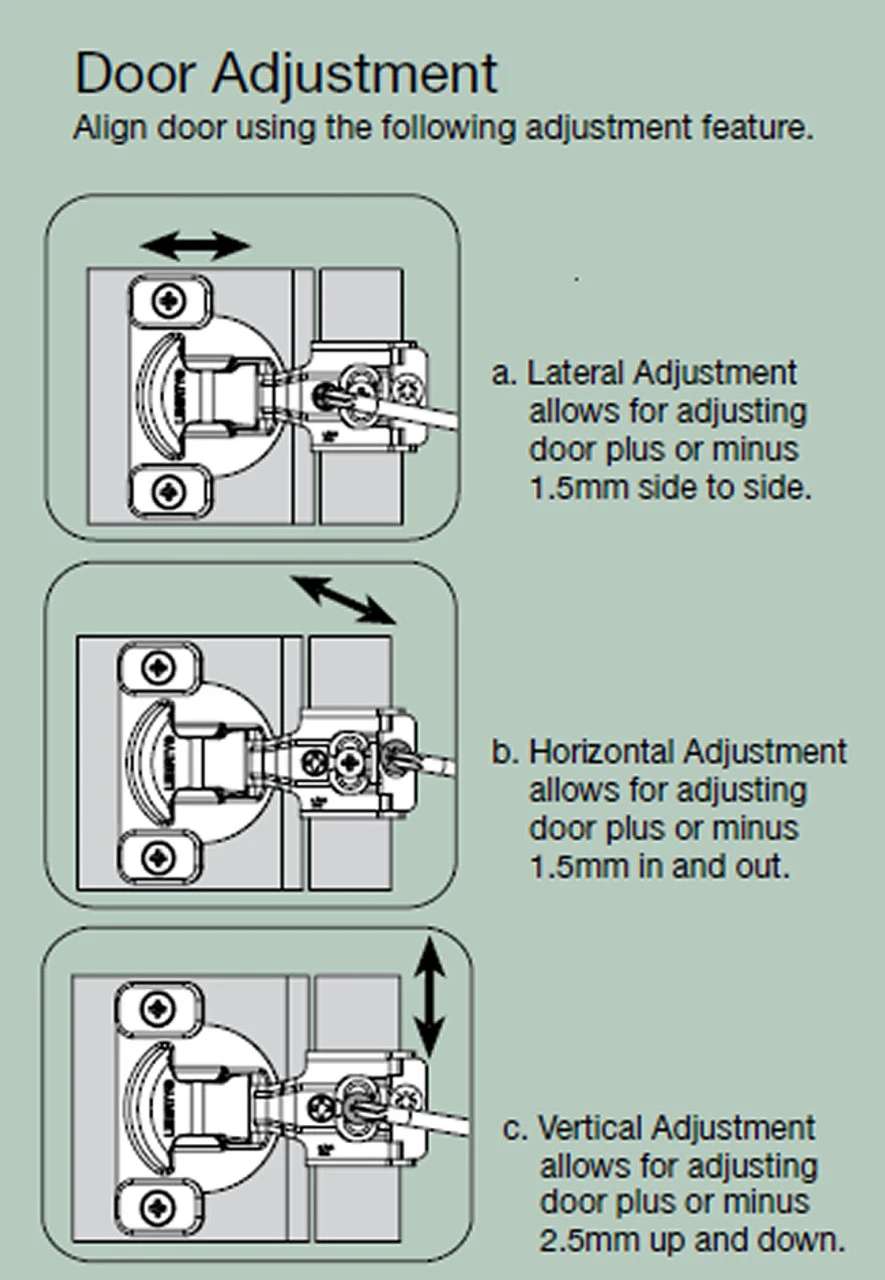

6-Way Adjustable:
Height adjustment 7/64″ (plus or minus 2.5mm
Depth adjustment by eccentric cam 1/64″ (minus 0.5mm) 7/64″(plus 2.5mm)
Side adjustment cam 1/16″ (plus or minus 1.5mm)

Your are purchasing one hinge with the dowels inside

DOWELS ARE EASILY REMOVED IF NOT NEEDED

• TECHNICAL SPECIFICATIONS

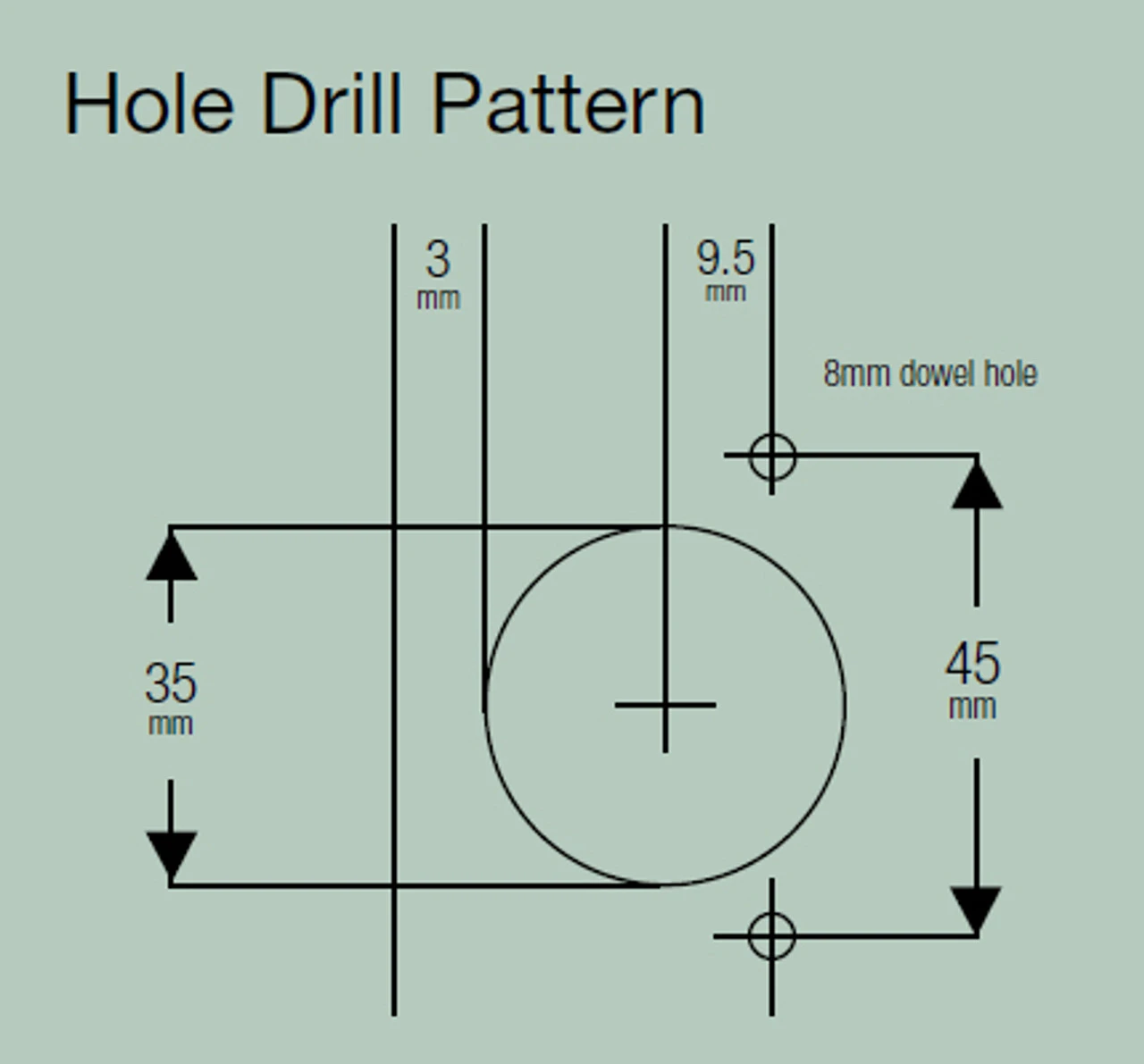

• Depth of metal cup 11.3mm

• Cup diameter 35mm

• Cup centers 1-3/4″

• Opening 106 degrees with (k) max 2.5mm

• 7/16″ overlay

• Drill door (k) from 2.5mm

• Self closing

• Thickness of door(t)from 16 to 19mm(11/16″ to 3/4″)

• Finish: Nickel Plated
