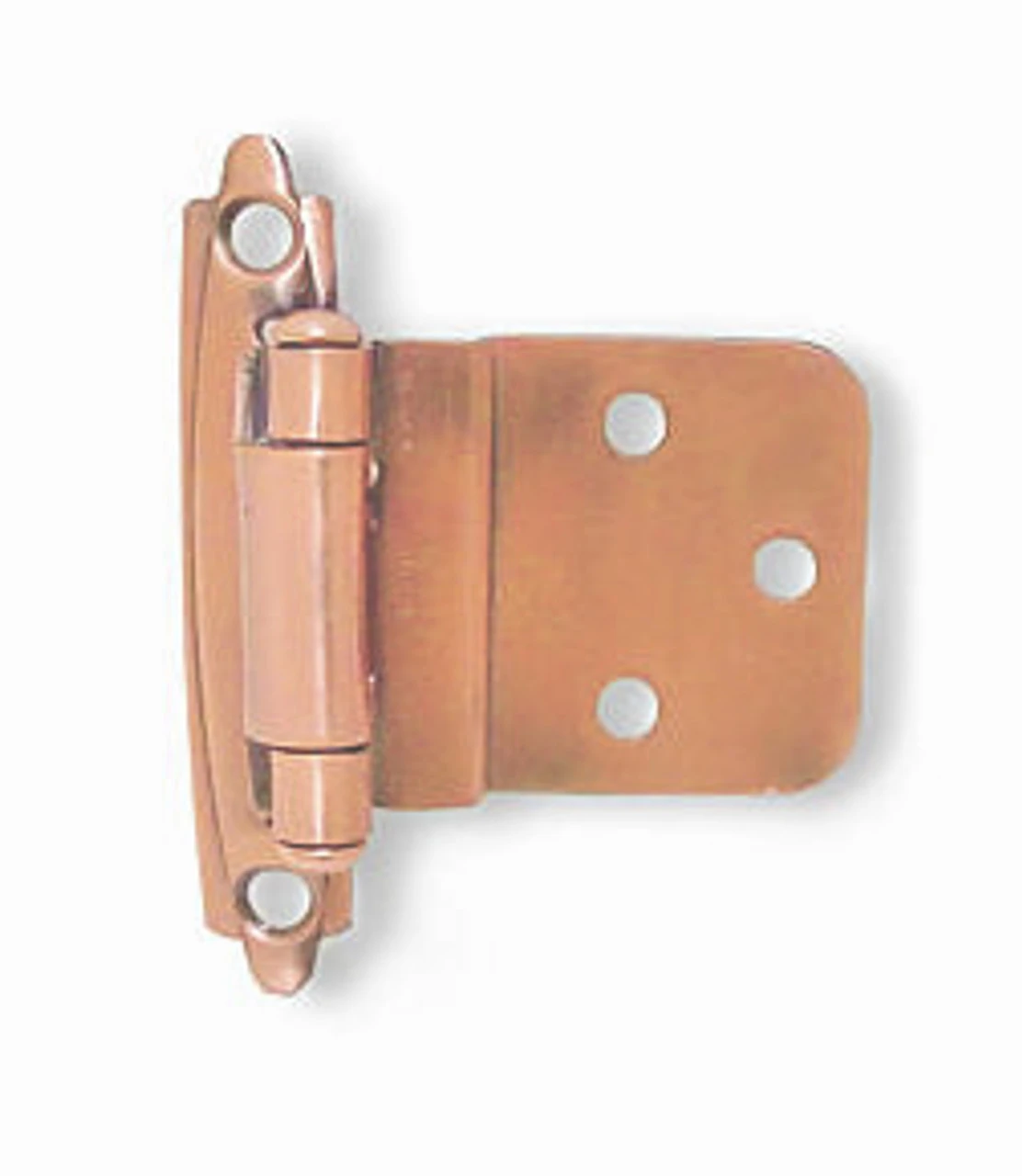

Liberty Pair 3/8″ Inset/Offset Copper Self Closing Hinges L-H0104AC-SR-O

Surface Mount Hinge – 3/8″ inset – semi concealed, self-closing – Copper. This will match any knob or pull that have the color code of “SR”. Comes with screws and bumpers. Priced in pairs.

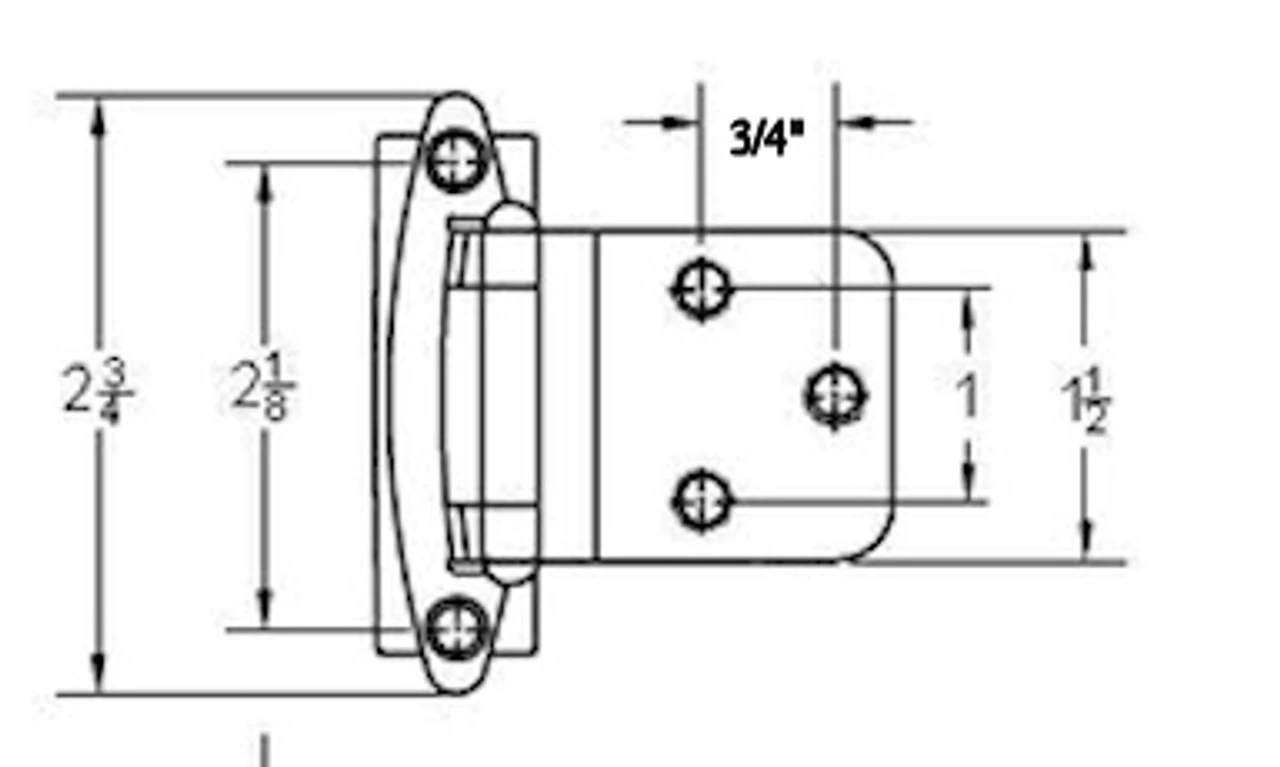

• Base Wing Centers: 2 1/8″ (54 mm)
• Base Wing Dimensions: 2 3/4″ x 1/2″ (70 mm x 13 mm)

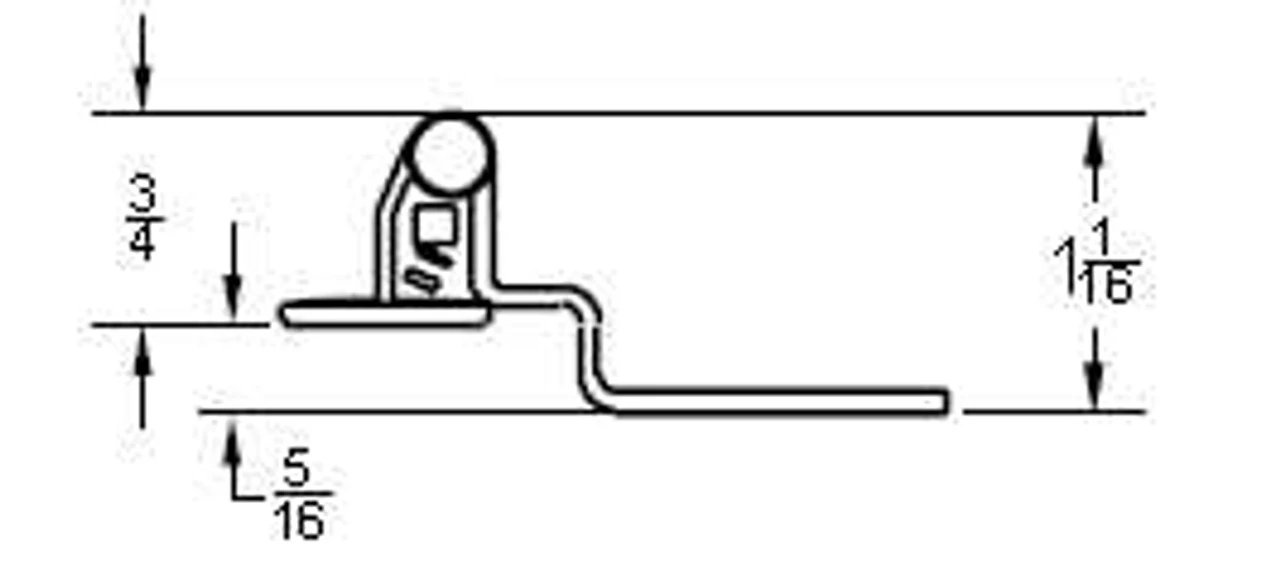

• Knuckle Projection: 5/8″ (16 mm)
• Door Wing Centers: 1″ and 3/4″ to center hole (25.4 mm and 19 mm)
• Door Wing Dimensions: 1 1/4″ x 1 1/2″ (32 mm x 38 mm)
• Door Wing Projection: 1/16″ (1.6 mm)

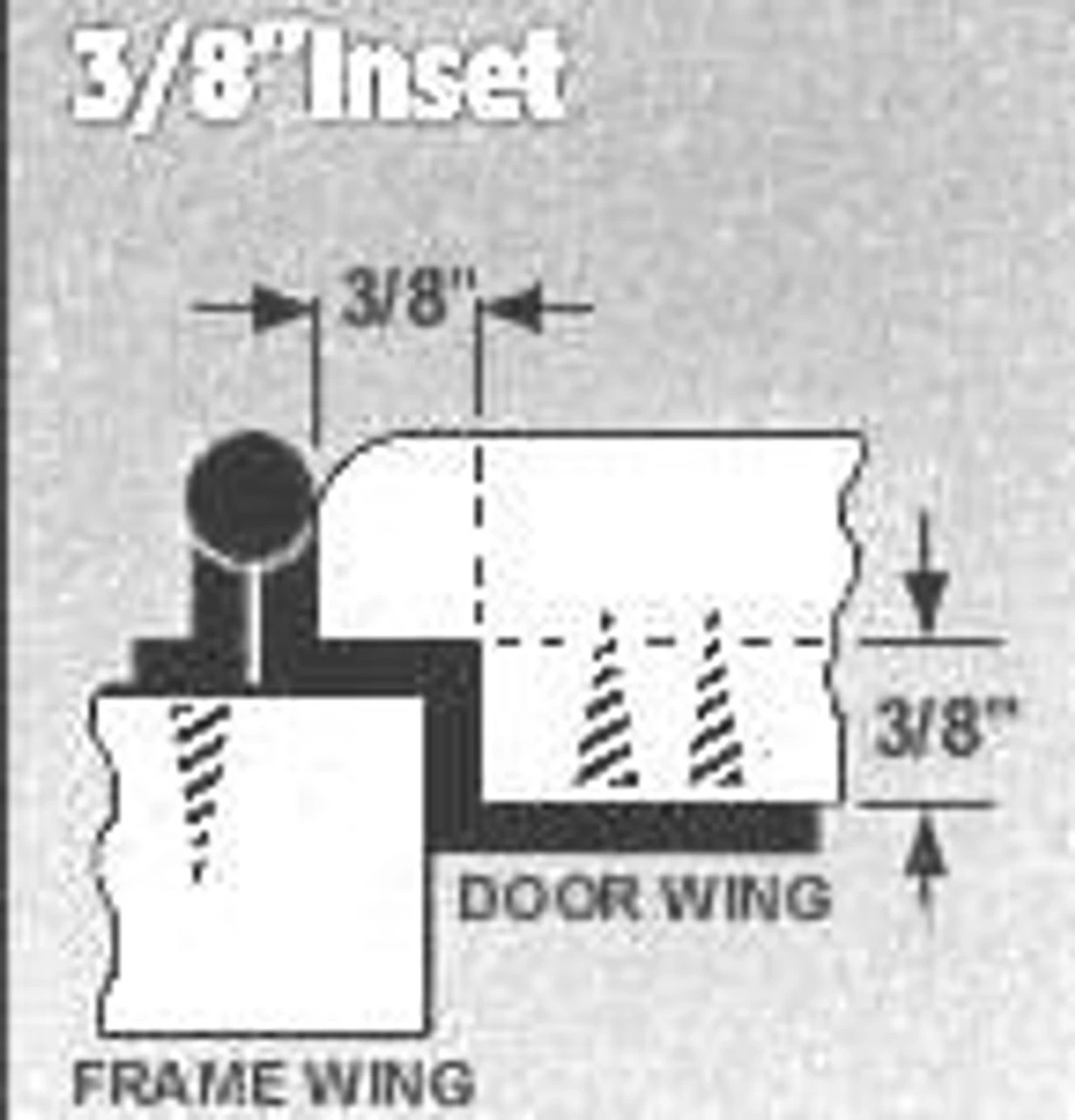

• Inset: 3/8″ (10 mm)
• Finish: Copper

L-H0104AC-SR-O

Liberty Hardware
