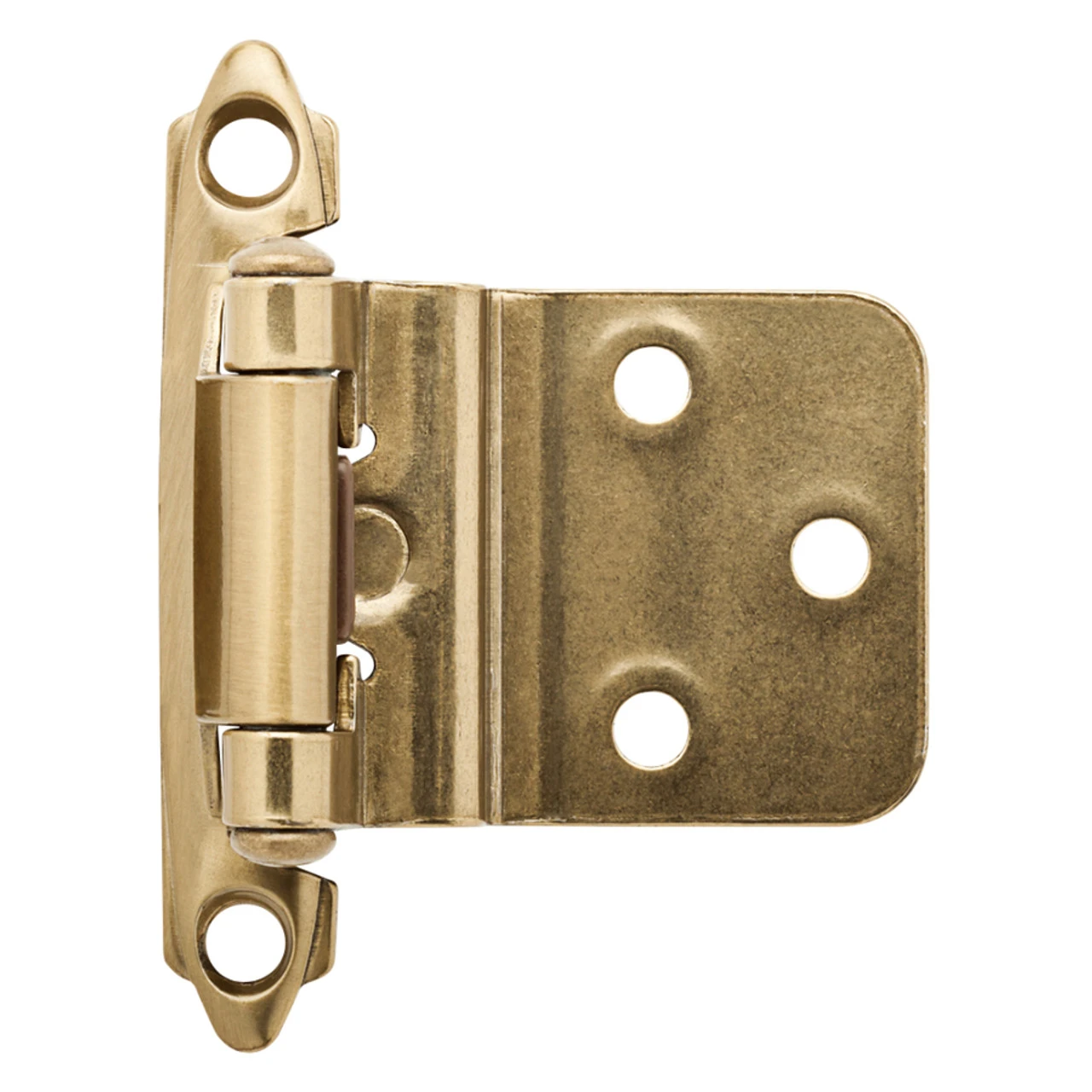

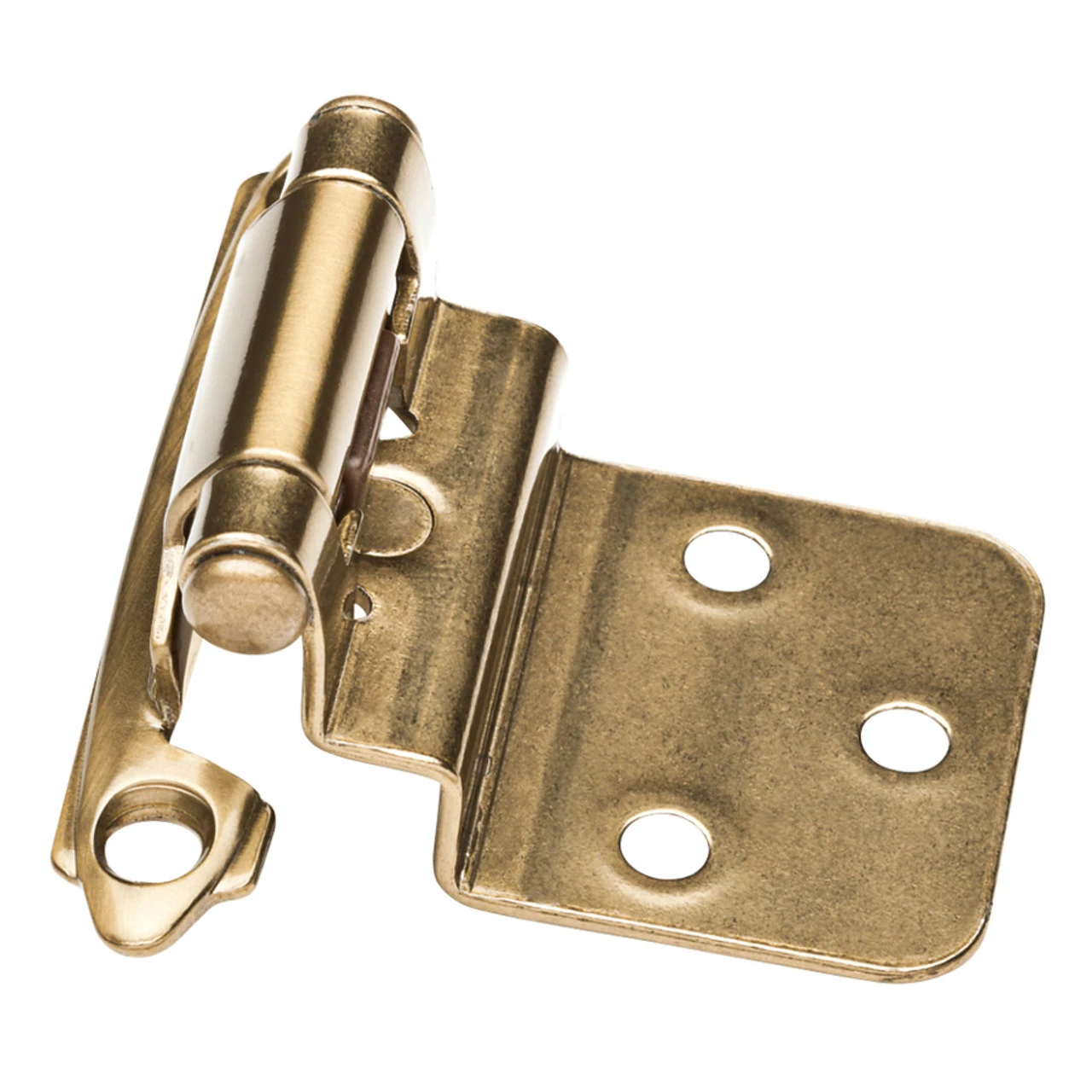

Liberty Pair 3/8″ Inset, Self Closing Hinge – Champagne Bronze H0104AV-CZ-CP

Surface Mount Champagne Bronze Hinges 3/8″ inset – semi concealed, self-closing – Satin Bronze. Will Match any knob or pull with the “CZ” and champagne bronze finish code. Comes with screws and bumpers. Priced in pairs.

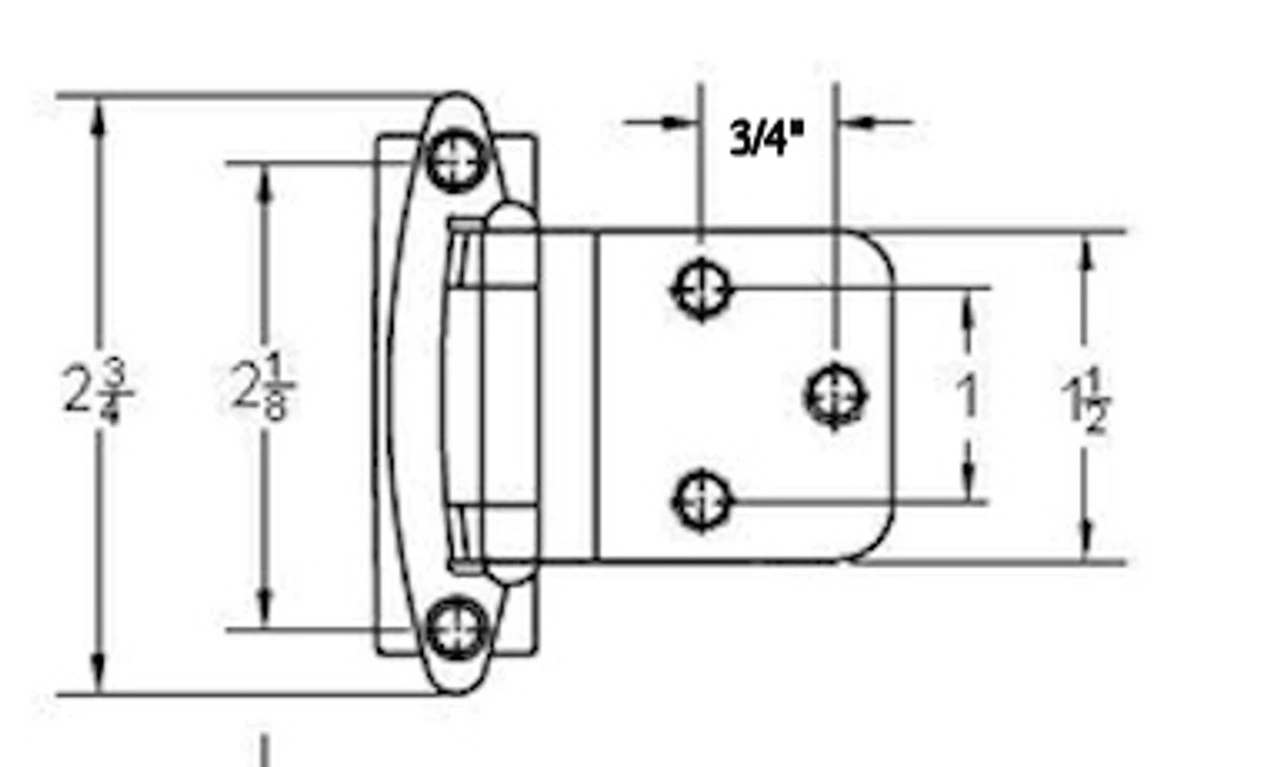

• Base Wing Centers: 2 1/8″ (54 mm)
• Base Wing Dimensions: 2 3/4″ x 1/2″ (70 mm x 13 mm)

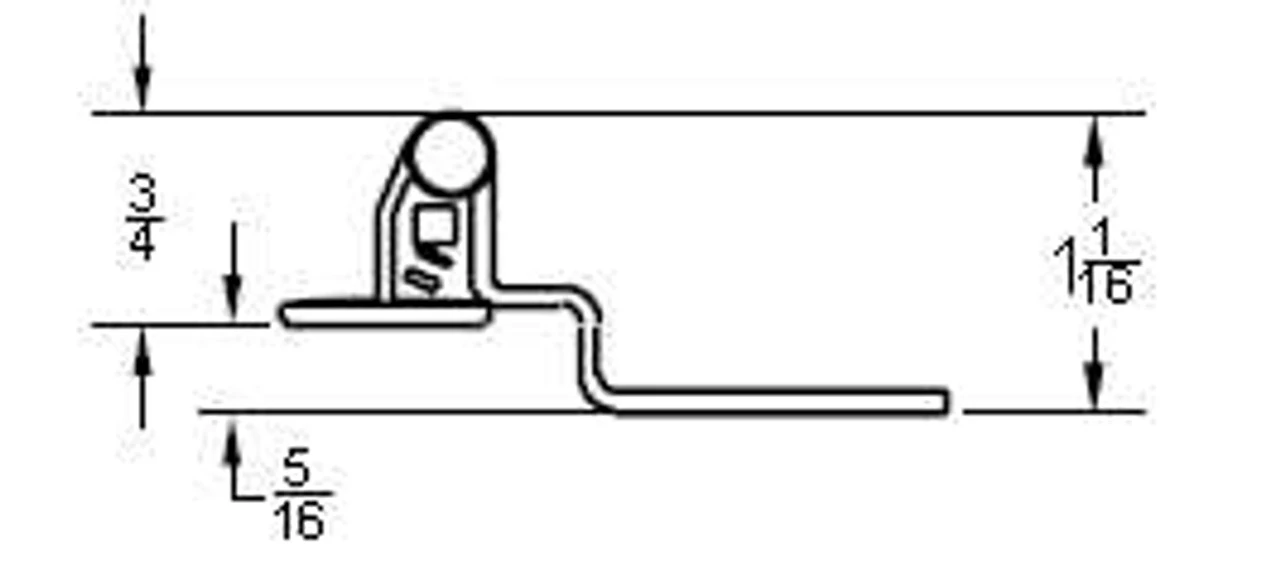

• Knuckle Projection: 5/8″ (16 mm)
• Door Wing Centers: 1″ and 3/4″ to center hole (25.4 mm and 19 mm)
• Door Wing Dimensions: 1 1/4″ x 1 1/2″ (32 mm x 38 mm)
• Door Wing Projection: 1/16″ (1.6 mm)

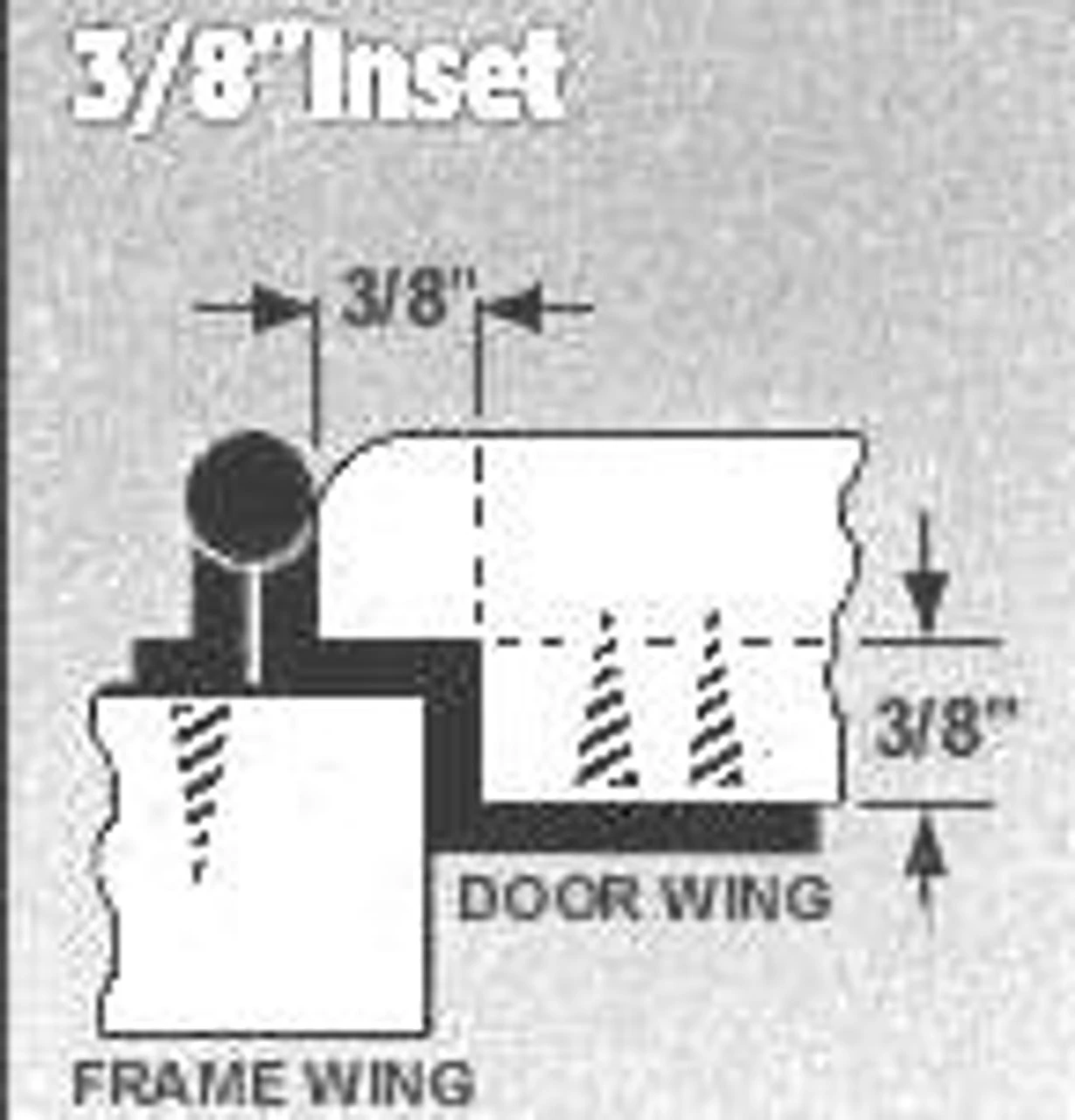

• Inset: 3/8″ (10 mm)
• Finish: Champagne Bronze

L-H0104AV-CZ-CP

Liberty Hardware
