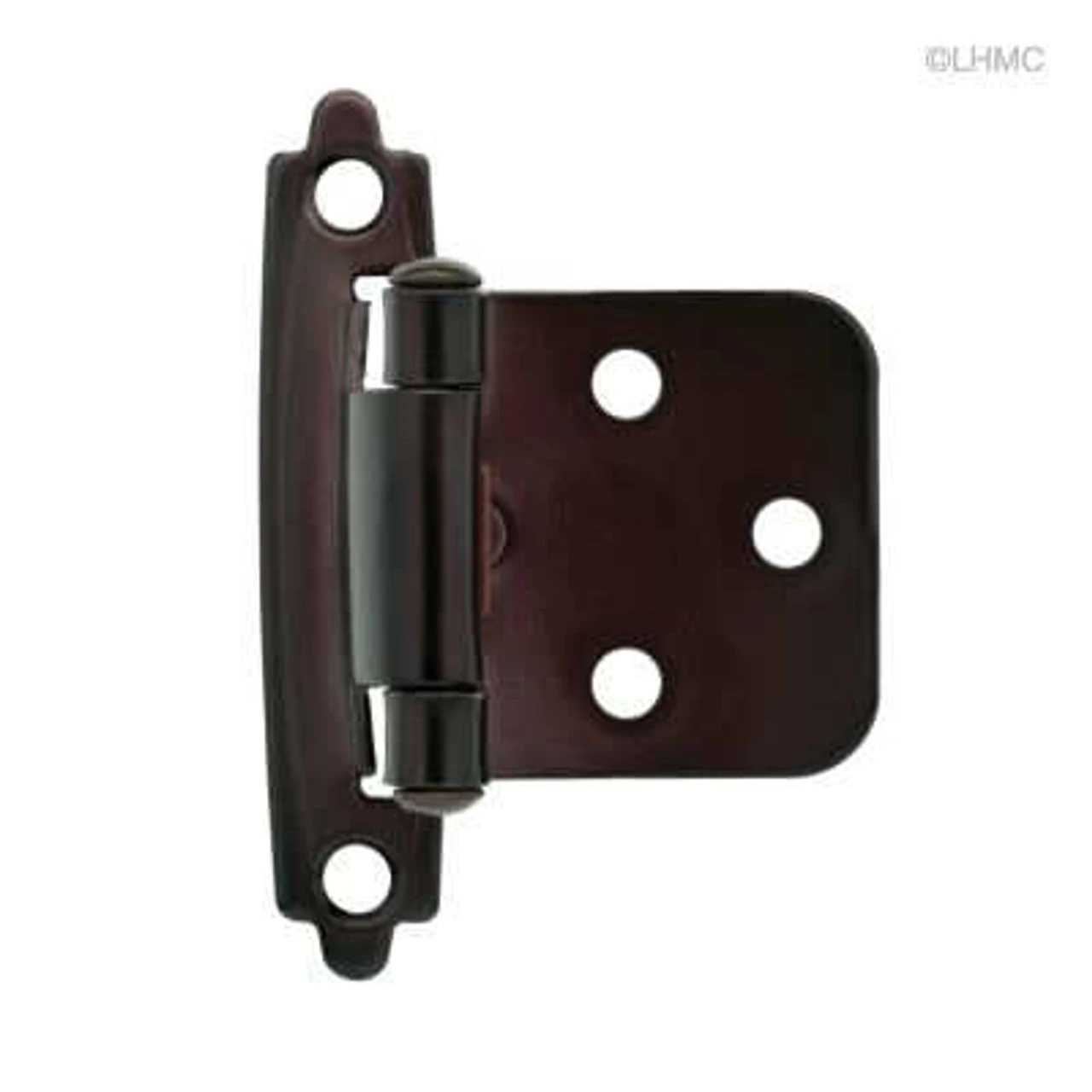

Liberty Pair Variable Overlay Self Closing Hinge Oil Rubbed Bronze L-H0103BC-500-C

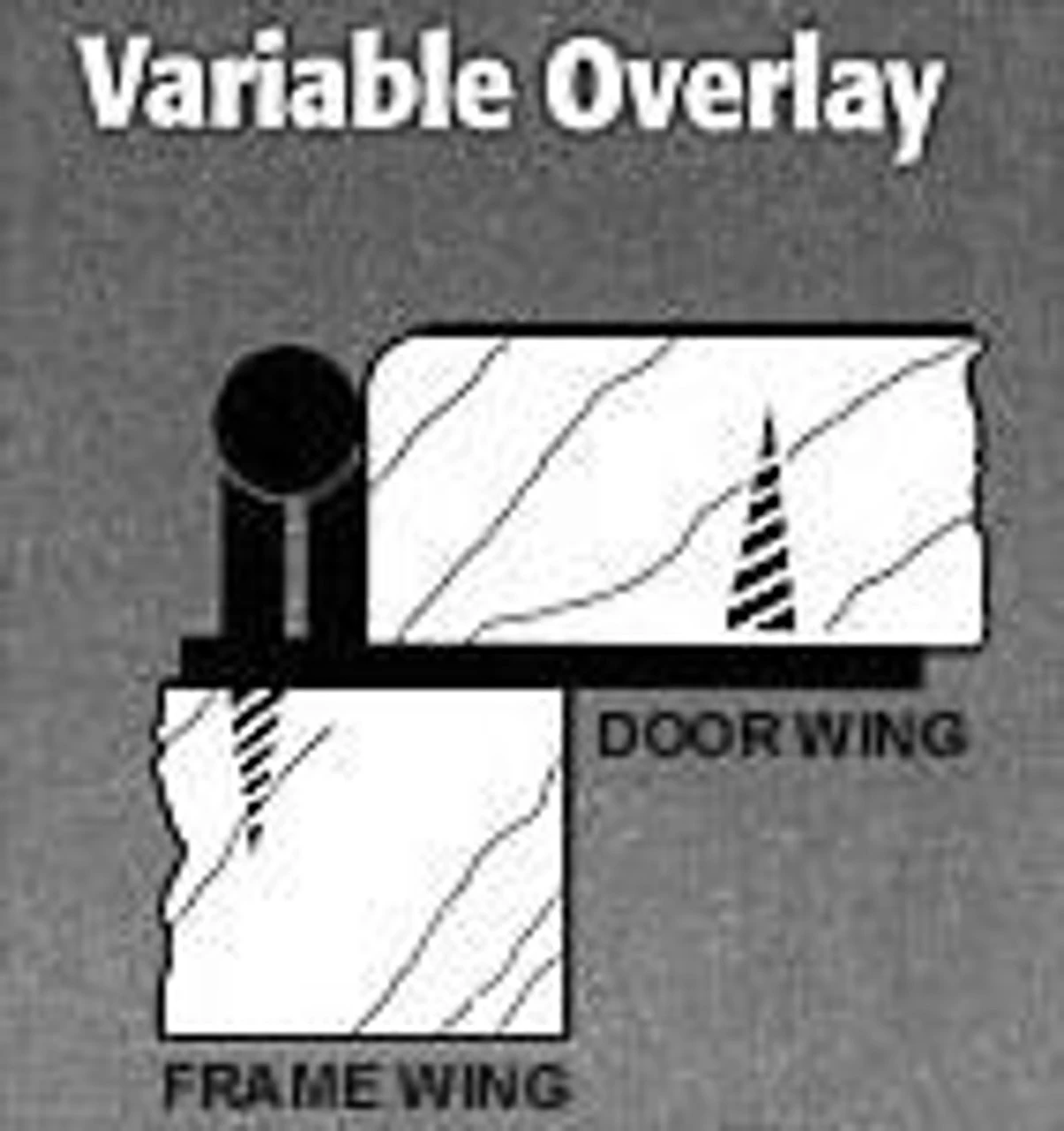

Overlay Self-Closing Cabinet Hinge Oil Rubbed Bronze Pair of Self closing hinges – Heavy Hinge – Oil Rubbed Bronze plated finish.Matches the “OB3” oil rubbed bronze finish the best. Standard hinge seen everywhere on face-frame cabinets. Liberty Brand. Comes with screws.

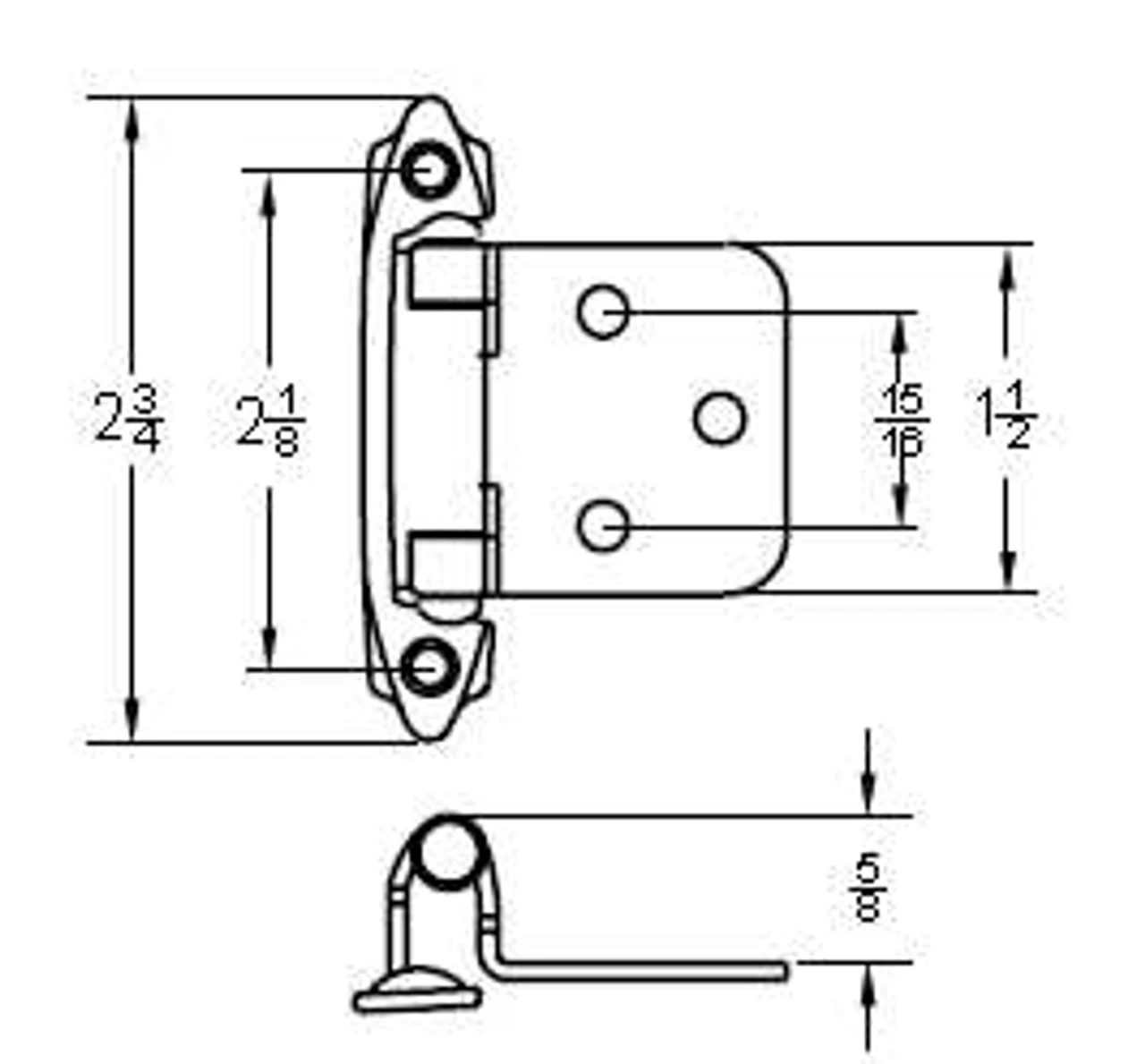

• Base Wing Centers: 2 1/8″ (54 mm)
• Base Wing Dimensions: 2 3/4″ x 1/2″ (70 mm x 13 mm)
• Knuckle Projection: 5/8″ (16 mm)
• Door Wing Centers: 1″ and 3/4″ (25.4 mm and 19 mm)
• Door Wing Dimensions: 1 1/4″ x 1 1/2″ (32 mm x 38 mm)
• Door Wing Projection: 1/16″ (1.6 mm)
• Inset: none
• Finish:Oil Rubbed Bronze

L-H0103BC-500-C
