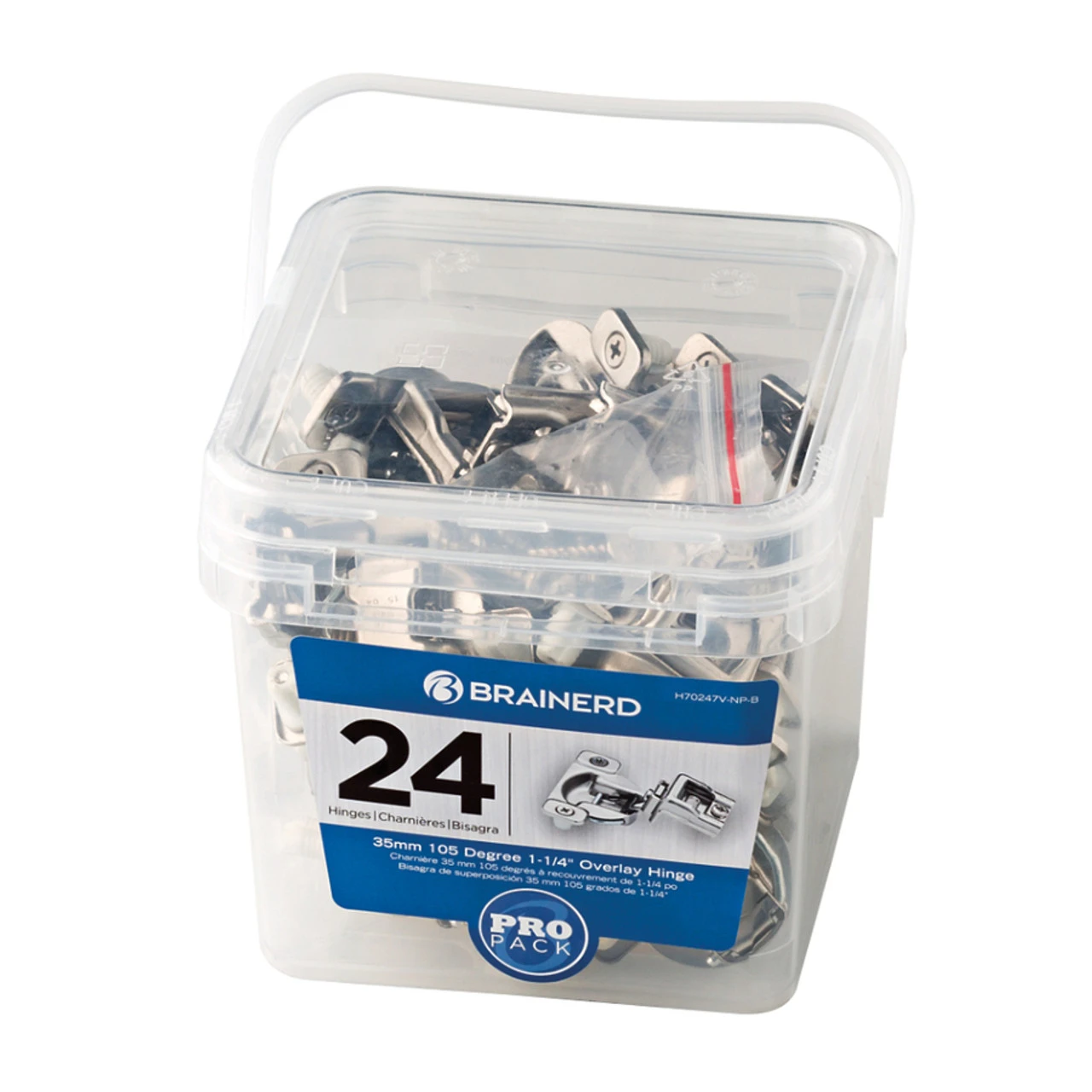

Contractors Pack of 24 Hinges With Dowels and Extra Screws and Installation Instructions
Easy to install one-piece face frame Euro hinge for full overlay doors partial wrap face frame plate.
- Builder’s European style compact one piece hinge. Mounting plate and hinge are one easy to install unit.

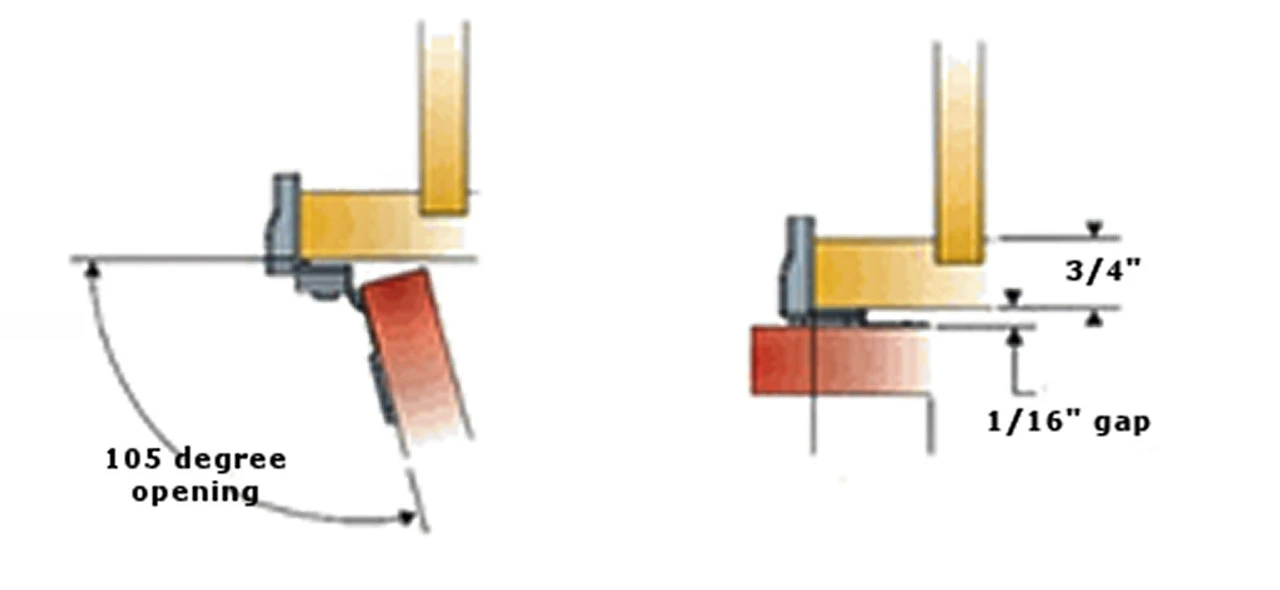

- Opening angle is 105 degrees.
- Self closing.
- Designed for face frame cabinets with overlay doors 1-1/4″ overlay.
- Hinge is for cabinets with a 3/4″ thick face frame.

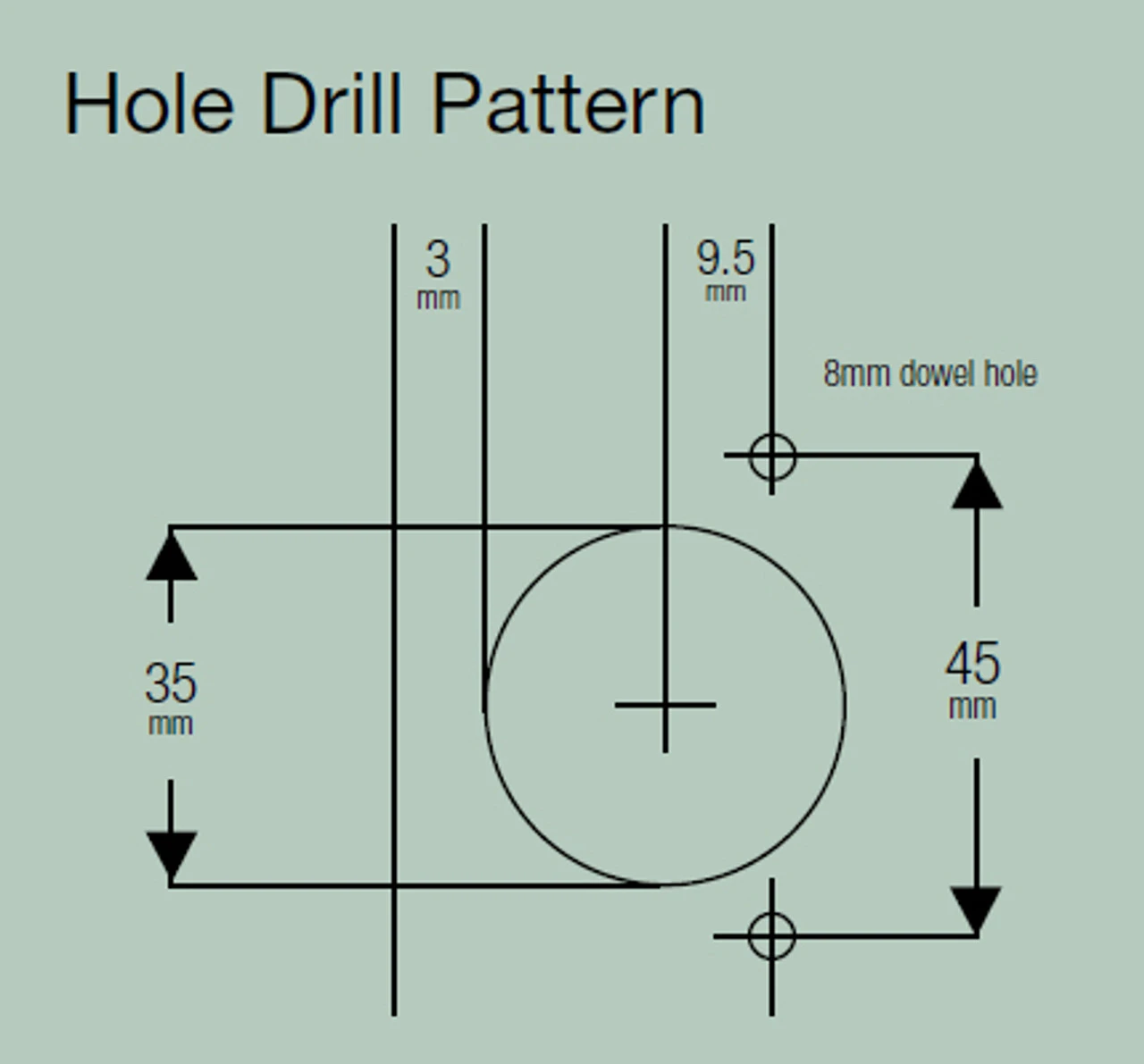

- Cup diameter 1-3/8″. Cup depth 7/16″. Bore distance (k) 3mm for 1-1/8″ overlay or 7mm for 1-1/4″ overlay.
- Comes with screws in the press-in dowels. Dowels are used in MDF or particle board. If mounting in solid wood, remove the dowels and use only the wood screws.
- Mounting screws not included for the face frame part. Each hinge requires one #6-7 screw to attach to the face frame.

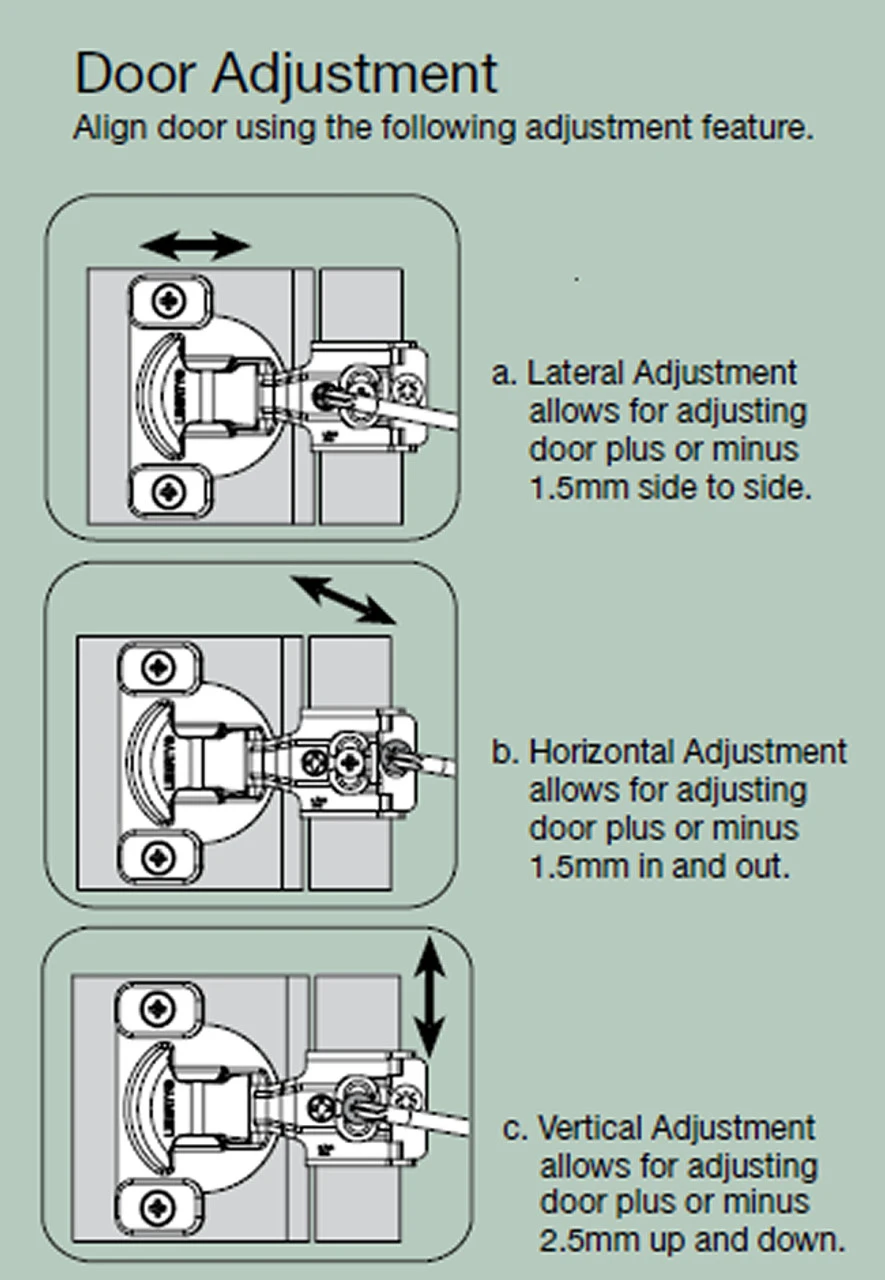

Nickel plated – 6-Way Adjustable – Liberty Hardware
LQ-H70247V-NP-B
